Name: Hwashi Customizable AC Pulse Spot Welding Machine for Hardware Industry Applications
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SP-100K
Price: 14,000.00 USD
Availability: InStock

Casa > Produtos > Máquina de soldadura do ponto >

Hwashi Customizable AC Pulse Spot Welding Machine for Hardware Industry Applications

Customizable Spot Welding Machine

AC Pulse Spot Welder

Hardware Industry Pneumatic Spot Welding Machine

Lugar de origem:

China

Marca:

HWASHI

Certificação:

CE/CCC/ISO

Número do modelo:

WL-SP-100K

Contacte-nos

Peça umas citações

Detalhes do produto

Nome do produto:

Hwashi Máquina de Soldadura de Pulsão AC Personalizável para Diferentes Requisitos de Soldadura na I

Aplicativo:

solda do aço de alumínio de cobre

Tamanho:

850x900x1850*mm

Peso:

450 kg

Doença:

Novo

Garantia:

12 meses

Certificado:

CE/CCC/ISO

vida útil:

8-10 anos

Termos do pagamento & do transporte

Quantidade de ordem mínima

1 conjunto

Preço

Negociável

Detalhes da embalagem

pacote de madeira digno de mar

Tempo de entrega

7-30 dias úteis após receber seu pagamento

Termos de pagamento

L/C,T/T

Habilidade da fonte

50 conjuntos por mês

Produtos relacionados

Vídeo

HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine with 1000Hz Inverter Technology and DC Welding Current

Obtenha o melhor preço

Vídeo

Hwashi Customizable AC Pulse Spot Welding Machine for Hardware Industry Applications

Obtenha o melhor preço

Vídeo

HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine with 1000Hz Technology for Consistent Metal Sheet Welding

Obtenha o melhor preço

Vídeo

Máquina de Solda por Ponto Inversora de Média Frequência Tipo Vertical HWASHI WL-MF-250K com Tecnologia de 1000Hz para Soldagem Consistente de Chapas Metálicas

Obtenha o melhor preço

Contacte-nos

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contato agora

Descrição do produto

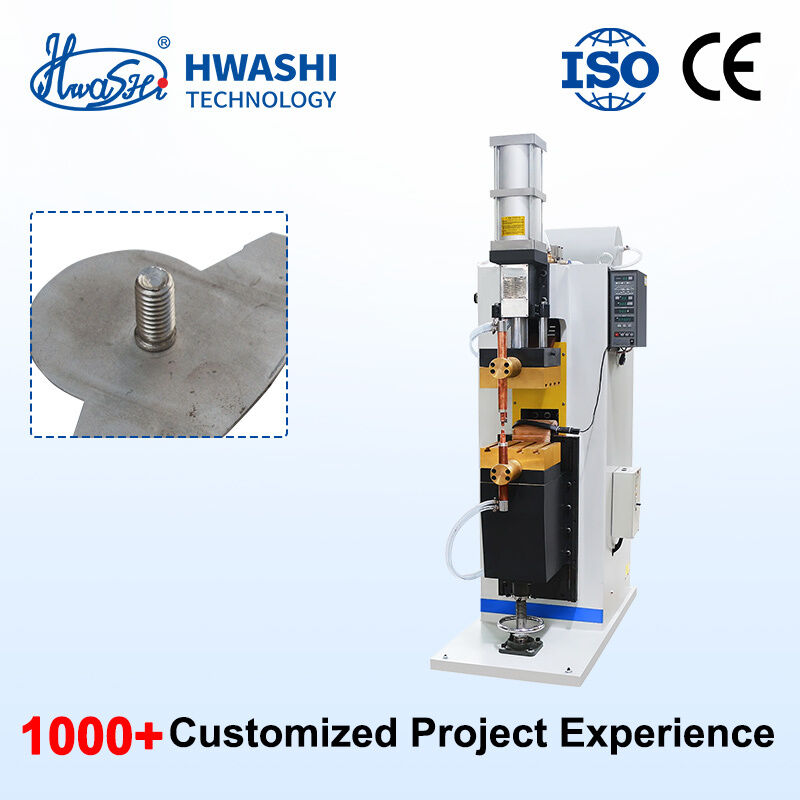

Hwashi Customizable AC Pulse Spot Welding Machine

The Hwashi AC Pulse Spot Welding Machine is engineered to meet diverse welding requirements in the hardware industry. This customizable solution transforms standard mains supply into precise welding power for various applications.

The AC pulse spot welding machine utilizes standard mains supply to lower voltage and increase electric current. This low-voltage, high-current energy is transmitted through electrodes to the connection point of two work pieces. The resistance at the linkage generates high temperatures, causing the metal to reach molten state and effectively welding the components together.

Key Features

Three control functions: constant primary and secondary current, constant voltage
Automatic adjustment of welding power and welding current
Complete automation with automatic cycle control for each program segment
Automatic repair welding when current levels are insufficient
Direct parameter setting via control panel for different welding models
Support for both single welding and continuous welding operations
Individual setting capability for intensity and time of welding current
Pneumatic control with delay functionality
Storage capacity for 9 different welding models
Silicon controlled phase shift triggering for precise current adjustment
Automatic voltage compensation for stable welding current

Technical Specifications

Model	Input Voltage	Related Capacity	Max Short Circuit Current	Duty Cycle Rate	Electrode Force	Electrode Stroke	Cooling Water
WL-S-5K	220	5	1	25	30	25	4
WL-S-10K	380 1PH	10	2.5	25	100	50	4
WL-S-16K	380 1PH	16	4.5	25	100	50	6
WL-SP-25K	380 1PH	25	7	25	350	80	6
WL-SP-35K	380 1PH	30	9	25	350	80	6
WL-SP-50K	380 1PH	50	13	25	800	100	6
WL-SP-75K	380 1PH	75	18	25	1000	100	8
WL-SP-100K	380 1PH	100	20	25	1000	10	8
WL-SP-150K	380 1PH	150	25	25	1000	8100	10
WL-SP-200K	380 1PH	200	30	25	1500	100	10
WL-SP-250K	380 1PH	150	38	25	1500	100	12
WL-SP-300K	380 1PH	300	45	25	2000	100	16
