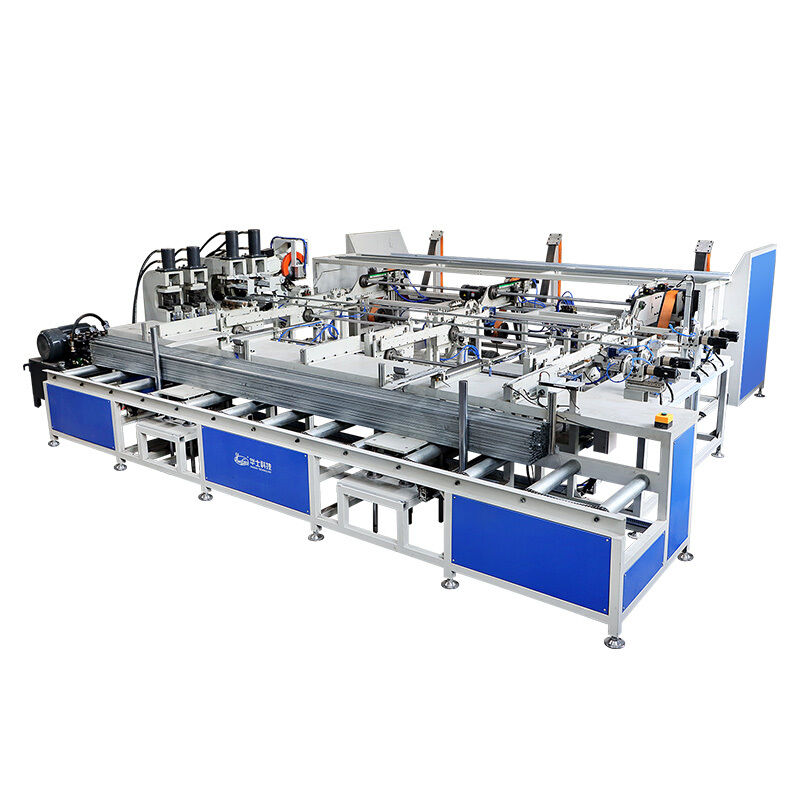

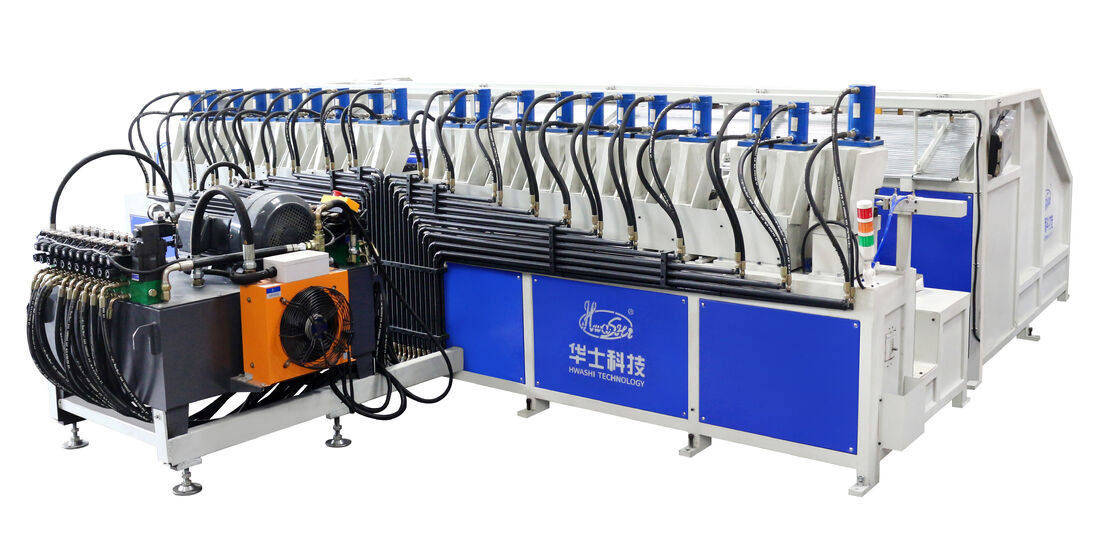

Name: Hwahsi Fully Automatic IBC Tube Pressing and Forming Machine with Hydraulic Pressing and Pipe End Shrinking for Stainless Steel Frame
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SQ-150K*2
Price: 375,005.00 USD
Availability: InStock

Casa > Produtos > Máquina de Solda IBC >

Hwahsi Fully Automatic IBC Tube Pressing and Forming Machine with Hydraulic Pressing and Pipe End Shrinking for Stainless Steel Frame

Fully Automatic IBC Tube Pressing and Forming Machine

Hydraulic Pressing IBC Frame Tube Forming Machine

Pipe End Shrinking IBC Tube Forming Equipment

Lugar de origem:

China

Marca:

HWASHI

Certificação:

Número do modelo:

WL-SQ-150K*2

Contacte-nos

Peça umas citações

Detalhes do produto

Nome do produto:

Máquina automática de prensagem e formação de tubos longos Hwahsi para linha de produção de estrutur

sistema de controle:

CLP

Embalagem:

embalagem de madeira

Especificação:

CCC

Garantia:

1 ano

Fonte de energia de soldagem:

AC / MF DC

Termos do pagamento & do transporte

Quantidade de ordem mínima

1 conjunto

Preço

Negociável

Detalhes da embalagem

Pacote de madeira digno de mar ou filme de PVC para FCL

Tempo de entrega

30 - 45 dias úteis após receber seu pagamento

Termos de pagamento

L/C,T/T

Habilidade da fonte

50 conjuntos por mês

Produtos relacionados

Vídeo

Hwahsi Fully Automatic IBC Tube Pressing and Forming Machine with Hydraulic Pressing and Pipe End Shrinking for Stainless Steel Frame

Obtenha o melhor preço

Vídeo

Hwahsi Automatic IBC Tube Forming Machine with PLC Control and Hydraulic Pressing for Full Automation

Obtenha o melhor preço

Vídeo

Linha de Produção Automática Completa de Estrutura de Gaiola IBC com Teste de Vazamento e Eficiência de Soldagem de 50 segundos/peça

Obtenha o melhor preço

Vídeo

Máquina de produção automática de gaiolas IBC com tempo de ciclo de 60 segundos por gaiola certificada ISO9001 e peso de 2000 kg

Obtenha o melhor preço

Contacte-nos

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contato agora

Descrição do produto

Hwahsi Automatic Long Tube Pressing And Forming Machine For IBC Stainless Steel Frame

The Hwahsi Automatic Long Tube Pressing and Forming Machine is a specialized custom solution designed for IBC tube processing in stainless steel frame manufacturing production lines. This advanced equipment enables fully automated pipe feeding, pipe end shrinking, hydraulic pressing, and automatic unloading processes without requiring operator intervention.

Key Features & Benefits

Fully Automatic Operation: Seamless automated processing eliminates the need for human intervention
Pipe End Shrinking Capability: Ensures precision and consistency in IBC tube shaping to meet quality standards
Efficient Hydraulic Pressing: Advanced hydraulic system enhances tube formation efficiency and final product quality
Automatic Unloading: Integrated unloading process streamlines production workflow and minimizes downtime
Manpower Savings: Eliminates operator requirements, significantly reducing labor costs
Production Rate Enhancement: Advanced automation delivers substantial increases in production output within shorter timeframes

Operation Process

Finished Product

Processing Workflow:

Round tubes are manually loaded into the hopper before processing. The automated feeder then transports pipes to the hydraulic pressing station. The mechanical arm picks up two pipes simultaneously and positions them for hydraulic pressing and tube end shrinking. After pressing completion, finished tubes are automatically unloaded onto the conveyor system, which transfers the final materials into the collection trolley.

Technical Specifications

Pipe Diameter	Round pipe 18mm (customizable)
Pressing Source	Hydraulic
Pressing Mark Number	20
Cutting Function	Yes
Each Time Processing Number	2 pieces
Efficiency	12-15 seconds per 2 pieces

Advanced Manufacturing Solution: The IBC Long Tube Automatic Pressing and Forming Machine represents cutting-edge technology in IBC tube processing, providing manufacturers with a reliable, high-speed, and labor-saving solution to optimize production capabilities and enhance operational efficiency.
