Name: Hwashi Automatic Multiple Head Wire Mesh Spot Welding Machine with Synchronous Welding and Adaptive Technology
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SQ-150K*2
Price: 30,000.00 USD
Availability: InStock

Casa > Produtos > Máquina de solda de malha de arame >

Hwashi Automatic Multiple Head Wire Mesh Spot Welding Machine with Synchronous Welding and Adaptive Technology

Multiple-Head Synchronous Wire Mesh Spot Welding Machine

Adaptive Welding Technology Automatic Wire Welder

Automatic Wire Filling Multiple Head Welding Machine

Lugar de origem:

China

Marca:

HWASHI

Certificação:

Número do modelo:

WL-SQ-150K*2

Contacte-nos

Peça umas citações

Detalhes do produto

Nome do produto:

Hwashi Máquina de Soldadura Automática de Rede de Arame Múltipla Cabeça para estantes de cozimento d

Dimensão (l*w*h):

De acordo com o seu produto

Peso:

De acordo com o seu produto

Componentes principais:

PLC, motor, motor

Garantia:

1 ano

Fonte de energia de soldagem:

AC / MF DC

Termos do pagamento & do transporte

Quantidade de ordem mínima

1 conjunto

Preço

Negociável

Detalhes da embalagem

Pacote de madeira digno de mar ou filme de PVC para FCL

Tempo de entrega

30 - 45 dias úteis após receber seu pagamento

Termos de pagamento

L/C,T/T

Habilidade da fonte

50 conjuntos por mês

Produtos relacionados

Vídeo

Hwashi Automatic Multiple Head Wire Mesh Spot Welding Machine with Synchronous Welding and Adaptive Technology

Obtenha o melhor preço

Vídeo

Máquina de produção de condensadores de tubos de arame elétrico de alta velocidade e máquina de solda e dobra

Obtenha o melhor preço

Vídeo

HWASHI Máquina automática de soldadura de malha de arame com 10 cabeças de soldadura 40000A Corrente de saída e sistema automático de enchimento de arame

Obtenha o melhor preço

Vídeo

Máquina de solda automática de malha de arame com velocidade máxima de fiação de 200 mm/s, dobração do cabo de arame 2D e garantia de 1 ano

Obtenha o melhor preço

Contacte-nos

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contato agora

Descrição do produto

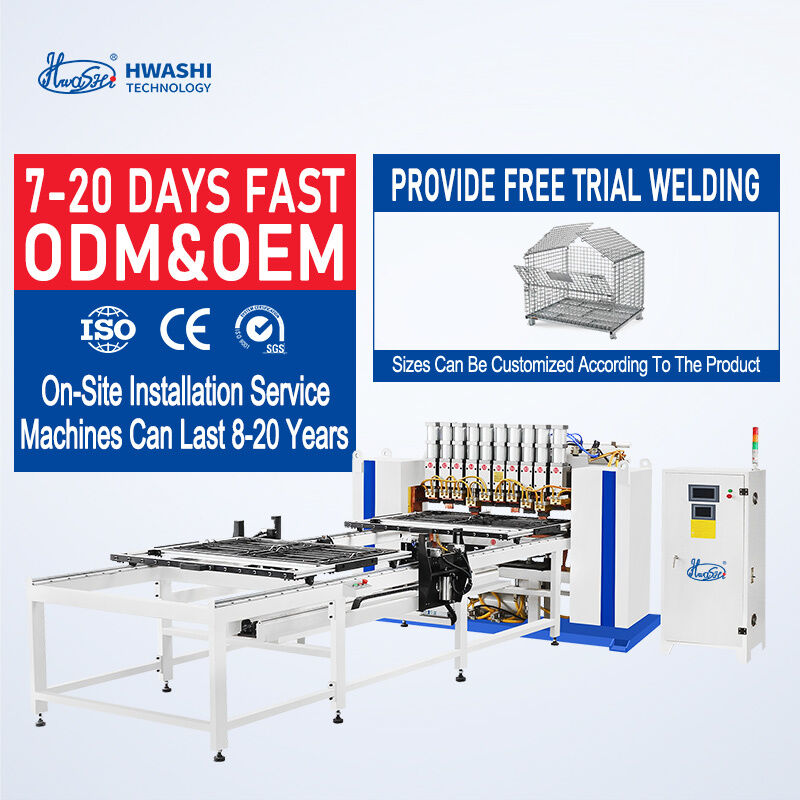

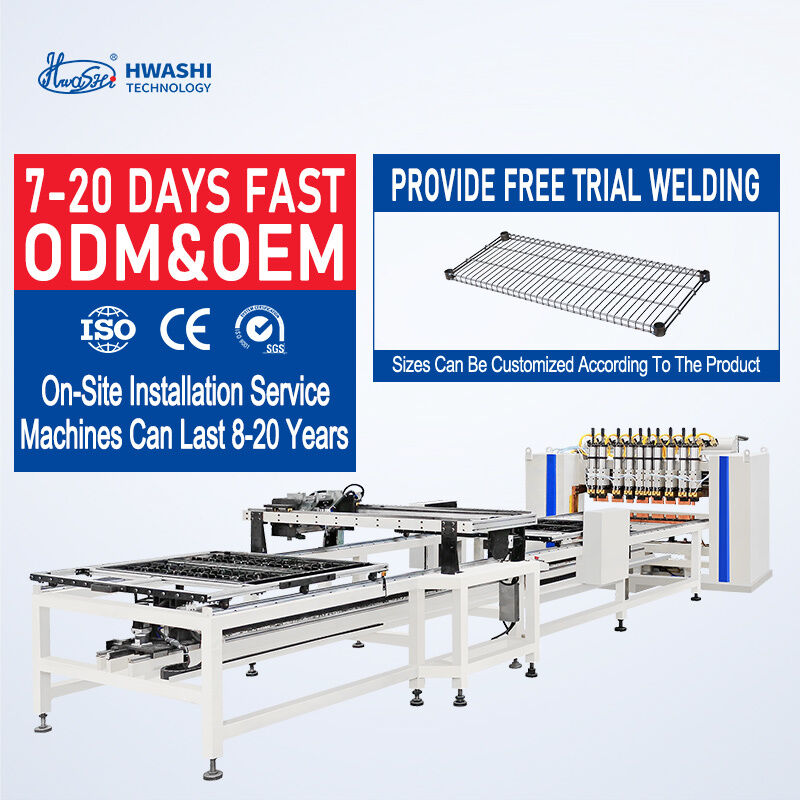

Hwashi Automatic Multiple Head Wire Mesh Spot Welding Machine for Shopping Cart

The Hwashi Automatic Multiple Head Wire Mesh Spot Welding Machine is a high-performance, purpose-built industrial equipment engineered exclusively for the mass production of shopping cart wire mesh components. Integrating advanced automation technology and precision welding mechanics, this machine delivers consistent weld quality, high throughput, and reliable operation to streamline the assembly of shopping cart frames, baskets, and mesh partitions.

Key Features

Multiple-Head Synchronous Welding: Equipped with 2-8 independent, adjustable welding heads that work synchronously to reduce production time by 40-60% compared to single-head machines, ideal for large-batch shopping cart manufacturing.
Adaptive Welding Technology: Intelligent current control system automatically adjusts welding current, pressure, and time based on wire diameter and mesh layer thickness, ensuring each weld meets industrial load-bearing standards (supports up to 50 kg of static load).

Intelligent Welding Control System Automatic welding by inputting coordinate data of welding position, welding current and other parameters	Welding Heads and Fixtures Processing and design according to the drawings of each wire shelf product (customized)
Automatic Wire Filling System Put precut straight wires into the hopper, and the system automatically fills wires into the fixture to increase efficiency and reduce labor	Automatic Double-layer Feeder While one fixture is welding, the wire filling system loads wires onto the other fixture simultaneously, automatically exchanging fixtures when welding completes

Production Line Machines

Wire Flattening and Cutting Machine Processes round wire into flat wire, automatically feeding round wire and cutting to required length. Typically processes 8mm wire coil into 12x3mm flat wire strips.	High Speed Wire Straightening and Cutting Machine Produces batch quantities of 2mm to 4mm wires at nearly 5 times the speed of normal wire cutting machines, increasing production rate and reducing labor costs.
Wire Frame Bending Machine Bends flat or round wires into square-shaped wire frames, capable of bending multiple wires simultaneously to increase production rate.	Wire Frame Butt Welding Machine Number of welding heads depends on mesh welding width. Different welding heads can be set with individual welding programs and currents respectively.
Wire Frame Double T-Butt Machine Welds cross bars of wire shelf to wire frame. Double head design increases production rate with easy operation. Automatic moving and welding applications available.	Wire Edge Trimming Machine Trims wire edges from wire frame after welding to create clean, smooth surfaces.
2D Wire Handle Bending Machine Bends wire handles for 2-6mm wire. Capable of bending any shape without changing molds.	3D Wire Bending Machine Bends wire into 3D shapes for 2-6mm or 3-8mm wire. Capable of bending any 3D shape without changing molds.
