Name: Medium Frequency Automatic Spot Welder with Dual Welding Heads and MFDC Inverter Technology for Barrel Hoop Buckles
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SQ-MF160Kx2
Price: 25,000.00 USD
Availability: InStock

Casa > Produtos > Máquina de soldadura da descarga do capacitor >

Medium Frequency Automatic Spot Welder with Dual Welding Heads and MFDC Inverter Technology for Barrel Hoop Buckles

Medium frequency spot welder with dual heads

Automatic spot welder for barrel hoops

MFDC inverter spot welding machine

Lugar de origem:

China

Marca:

HWASHI

Certificação:

Número do modelo:

WL-SQ-MF160Kx2

Contacte-nos

Peça umas citações

Detalhes do produto

Nome do produto:

Linha de produção de condensadores de tubos de arame frigorífico Máquina de soldadura Máquina de dob

Dimensão (l*w*h):

5000x2400x2200mm

Peso:

2500kg

Largura de soldagem eficaz:

600-1000mm (personalizado)

Garantia:

1 ano

Transformador:

Transformador da C.C. do MF

Termos do pagamento & do transporte

Quantidade de ordem mínima

1 conjunto

Preço

Negociável

Detalhes da embalagem

Pacote de madeira digno do mar do filme do PVC para FCL

Tempo de entrega

30 - 60 dias de trabalho receberam em seguida seu pagamento

Termos de pagamento

L/C,T/T

Habilidade da fonte

50 conjuntos por mês

Produtos relacionados

Vídeo

MFDC Double-Head Spot Welding Machine with Dual-Point Welding and MFDC Transformer for Barrel Hoop Lock Clips (600-1000mm Welding Width)

Obtenha o melhor preço

Vídeo

Máquina de Solda por Ponto AC Hwashi Wl-Sp-1ook Soldadores por Ponto Elétricos de Alto Desempenho

Obtenha o melhor preço

Vídeo

Máquina de soldadura de descarga de condensador de 15 KVA para manuseio de panela de utensílios de cozinha SS

Obtenha o melhor preço

Vídeo

Máquina de soldadura de descarga de condensador Hwashi 15KVA para alça de panela de utensílios de cozinha SS

Obtenha o melhor preço

Contacte-nos

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contato agora

Descrição do produto

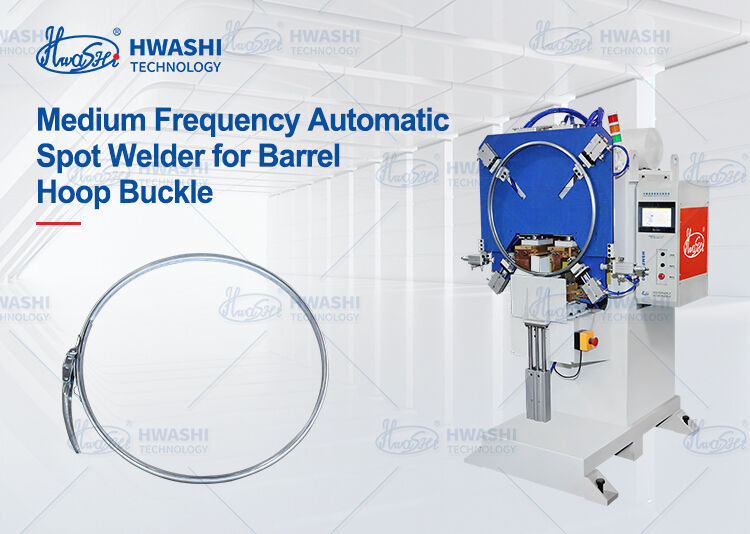

Medium Frequency Automatic Spot Welder for Barrel Hoop Buckle

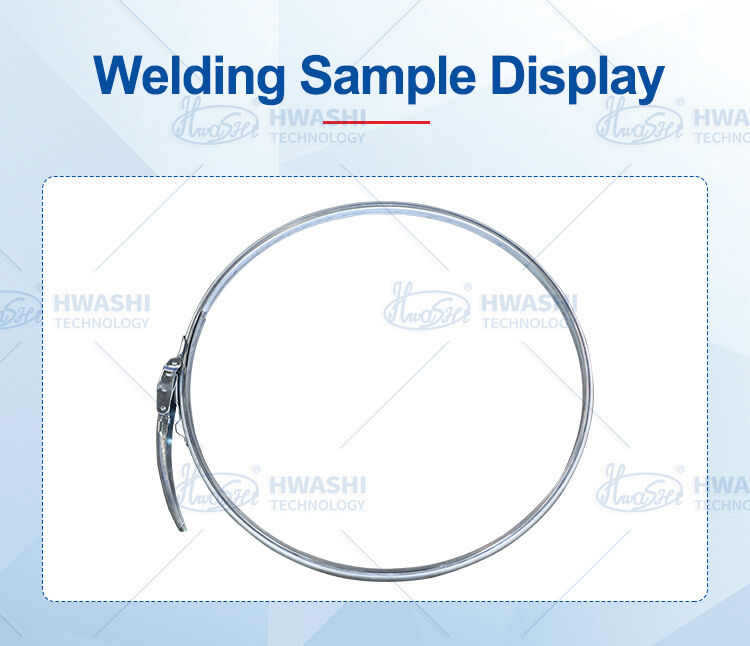

On every steel drum, the hoop buckle is the most critical component—it's the mechanical latch that tightens and locks the barrel hoop in place, bearing the full clamping force during sealing, opening, and transportation. A failed buckle weld results in loose hoops, broken seals, and leaked contents. For industries handling chemicals, petroleum, or food products, this represents not just a quality issue but a safety and compliance failure.

Hwashi's Medium Frequency Automatic Spot Welder for Barrel Hoop Buckles is engineered to prevent such failures. This machine automates the entire buckle welding process: operators load the hoop and buckle, and the machine positions, clamps, and welds both attachment points with precise MFDC energy before releasing the finished part. Every weld is identical—consistent nugget size, penetration depth, and pull strength—ensuring reliability shift after shift, drum after drum.

What distinguishes this machine is the integration of medium-frequency inverter DC technology with a welding process specifically optimized for barrel hoop buckles. The MFDC power supply handles galvanized steel hoops without spatter or coating damage. The fixture system accommodates the curved geometry of barrel hoops, and dual welding heads deliver symmetrical, simultaneous welds unmatched by single-head machines.

Key Differentiating Features

Automatic Welding Cycle

Eliminates operator skill dependency with fully automated clamping, electrode approach, welding current profile, hold time, and retraction. Ensures consistent weld quality regardless of operator experience.

MFDC Inverter Technology

Operates at 1000Hz for rapid, concentrated energy pulses that form solid weld nuggets before zinc coating vaporizes. Results in clean welds with minimal spatter, intact zinc coating, 30%+ energy savings, and power factor ≥0.90.

Dual Welding Heads

Simultaneous, synchronized welding of both attachment points ensures symmetrical weld quality under identical conditions. Eliminates thermal and mechanical variations found in single-head processes.

Curved-Surface Fixturing

Engineered specifically for barrel hoop curvature with shaped contact blocks and custom electrodes. Ensures full, even contact at welding positions without shimming or compromise.

Operational Flexibility

Accommodates multiple drum sizes through quick-change fixture components and programmable welding parameters. Store and recall up to 101 welding programs—switch between 55-gallon drum hoops and 20-liter pail hoops in minutes without recalibration or test welds.
