Name: Automatic Spot Welding Machine with MFDC Transformer and Quick-Change Fixture System for 8-Second Cycle Time Gasket Welding
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SF-MF-100K/120K/160K
Price: 375,000.00 USD
Availability: InStock

Casa > Produtos > Soldador da chapa metálica >

Automatic Spot Welding Machine with MFDC Transformer and Quick-Change Fixture System for 8-Second Cycle Time Gasket Welding

Lugar de origem:

China

Marca:

HWASHI

Certificação:

Número do modelo:

WL-SF-MF-100K/120K/160K

Contacte-nos

Peça umas citações

Detalhes do produto

Nome do produto:

HWASHI Folha de Metal Soldador de Ponto Personalizado Piso de Aço Painel Galvanizado Máquina Automát

Dimensão (l*w*h):

2500x1200x1950mm

Peso:

800kg

Uso:

Soldadura do painel de aço

Garantia:

1 ano

Transformador:

Transformador da C.C. do MF

Termos do pagamento & do transporte

Quantidade de ordem mínima

1 conjunto

Preço

Negociável

Detalhes da embalagem

pacote de madeira digno de mar

Tempo de entrega

20 - 30 dias de trabalho receberam em seguida seu pagamento

Termos de pagamento

L/C,T/T

Habilidade da fonte

50 conjuntos por mês

Produtos relacionados

Vídeo

PLC-controlled Automatic Spot Welding Machine with MFDC Power Supply for Multi-Point Simultaneous Welding of Automotive Gaskets

Obtenha o melhor preço

Vídeo

Máquina de Solda por Ponto Automática HWASHI com Corrente Máxima de 34000A, Largura Ajustável de 1200mm e Tela de Toque Digital para Chapas Metálicas

Obtenha o melhor preço

Vídeo

Máquina de soldagem de pontos de chapa metálica de 7 eixos CNC com fonte de alimentação de inversor de frequência média

Obtenha o melhor preço

Vídeo

Hwashi CNC Seven 7axis Double Heads Sheet Metal Welder Máquina automática de soldagem por pontos para Squatrack

Obtenha o melhor preço

Contacte-nos

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contato agora

Descrição do produto

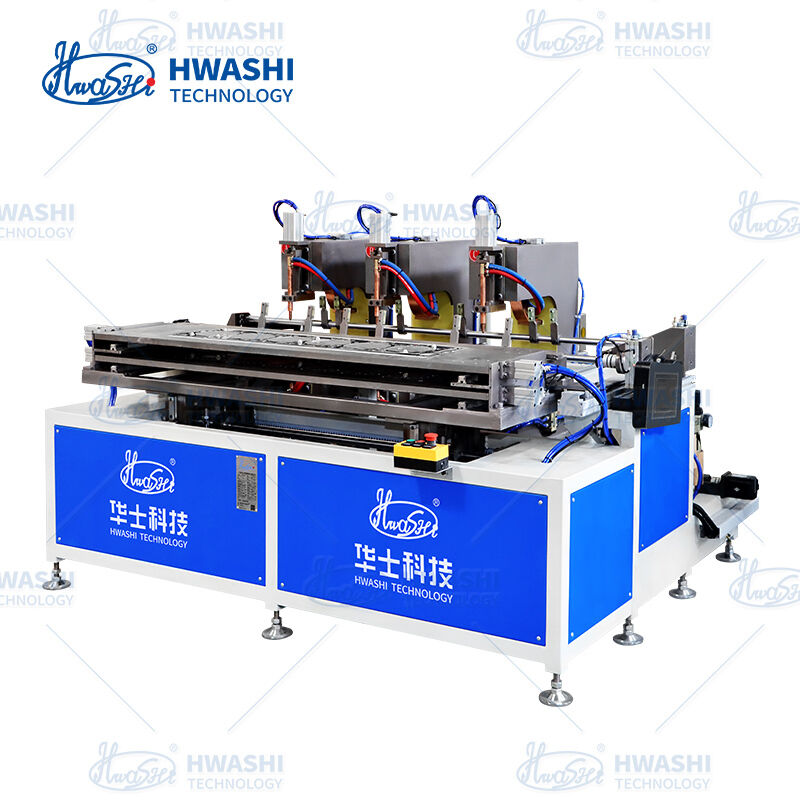

Automatic Spot Welding Machine for Automotive Engine Gaskets

Product Overview

In engine manufacturing, gaskets serve as critical components that ensure reliable performance and prevent catastrophic failure. A poorly welded gasket can lead to leakage, overheating, and engine damage. Hwashi's Automatic Spot Welding Machine delivers flawless, repeatable welds on every automotive gasket, trusted by OEMs and manufacturers worldwide.

This specialized machine is engineered specifically for producing high-integrity spot welds on multi-layer engine gaskets—including cylinder head gaskets, exhaust manifold gaskets, and oil pan gaskets. Every feature, from fixture design to power delivery, is optimized for the unique challenges of gasket welding: thin materials, tight tolerances, multiple layers, and zero tolerance for burn-through or distortion.

Key Differentiators

Purpose-Built for Gasket Welding

Unlike generic spot welders, this machine accounts for the unique characteristics of gasket layers—thin, flexible, and often coated with elastomers or adhesives that degrade under excessive heat. The MFDC power supply delivers controlled, concentrated energy pulses that form strong nuggets without overheating surrounding sealing areas.

High Production Efficiency

With automatic welding cycles handling positioning, clamping, multi-point simultaneous welding, electrode retraction, and part ejection, a single operator can produce hundreds of finished gaskets per shift. Cycle times as low as 8 seconds per gasket and multi-station configurations eliminate welding station bottlenecks.

Rapid Changeover Capability

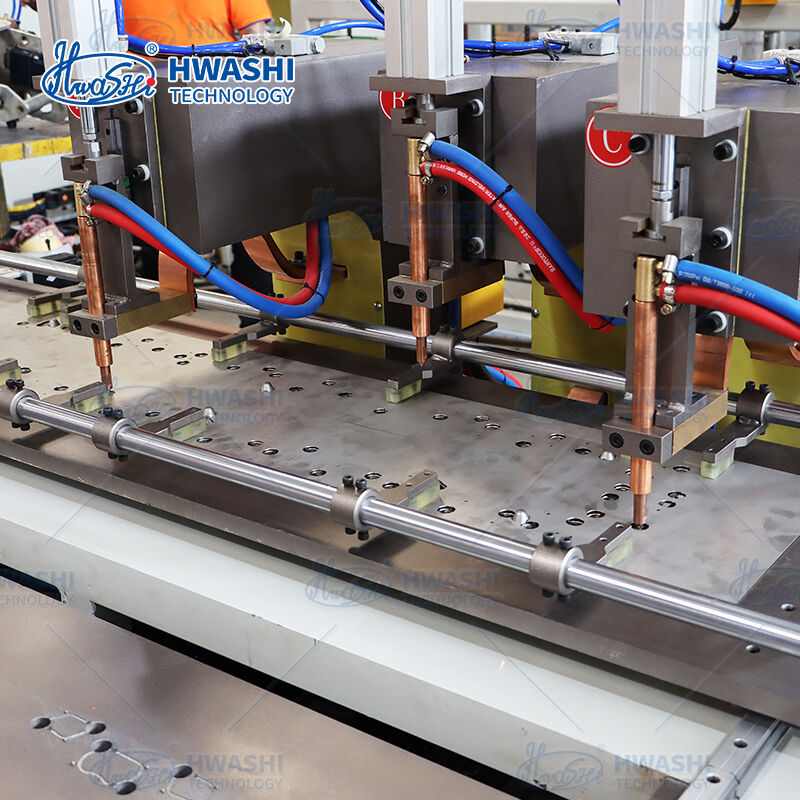

The quick-change fixture system enables manufacturers producing multiple gasket models to swap fixtures and select corresponding welding programs on the touch screen within minutes. Store up to 101 welding programs for instant recall, each with pre-set current, time, and pressure parameters.

Complete Quality Documentation

The machine logs welding current, voltage, and time for every weld point. Integration with MES or SPC systems provides full traceability from raw material to finished gasket, enabling precise identification of manufacturing parameters for any quality issues.

Performance Benefits

Deep penetration without burn-through on thin (0.1mm+) gasket layers
Consistent nugget size across all weld points regardless of position
Minimal spatter—no post-weld cleaning or rework required
No damage to coatings—elastomer and rubber layers remain intact around weld zones
Welds designed to withstand combustion pressure, coolant flow, and thermal cycling for engine lifespan

Machine Configuration Options

Configuration	Rotary Table	Linear Feed	Inline System
Best For	Medium-volume, multi-model	High-volume, single-model	Integrated production lines
Stations	2–4 indexing stations	2–4 sequential stations	Continuous flow
Loading Mode	Manual or auto	Manual or auto	Fully automatic
Changeover Time	10–15 min	10–15 min	20–30 min
Footprint	Compact	Medium	Custom
